Name: 1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v
Brand: Changshu Seagull Crane&Hoist Machinery Co.,Ltd
SKU: HHXG2
Price: 600.00 USD
Availability: InStock

Dom Produkty Elektryczny podnośnik łańcuchowy

1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v

Szczegóły Produktu:

Place of Origin:	China,Jiangsu
Nazwa handlowa:	SEAGULL
Orzecznictwo:	CE
Model Number:	HHXG2

Zapłata:

Minimalne zamówienie:	50 sztuk
Cena:	negocjowalne
Packaging Details:	carton and pallet
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	10000 sets per year

Kontakt

Szczegółowy opis produktu

Stan:	Nowy	Stosowanie:	Wciągnik budowlany
Źródło prądu:	Elektryczny	Rodzaj zawiesia:	Łańcuch
Maksymalna waga podnoszenia:	5T	Maksymalna wysokość podnoszenia:	12m
Gwarancja:	Rok	kolor:	Opcjonalny
Podkreślić:	electric chain fall , electric chain block

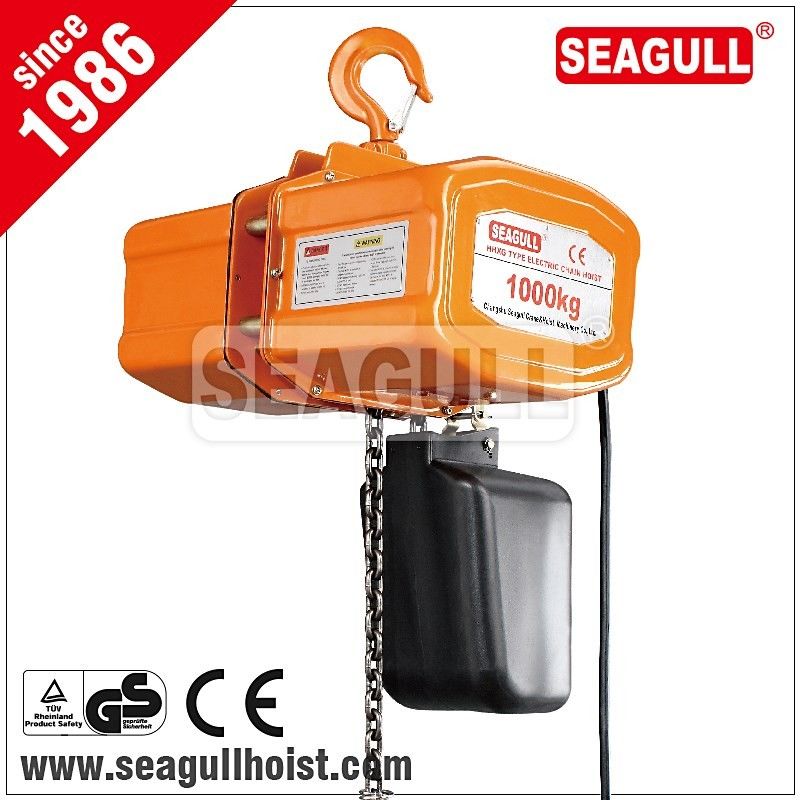

HHXG Electric Chain Hoist

Capacity:0.5-5ton
Lifting speed:1m/min-6.3m/min
Voltage:110-440V
Frequence:50/60Hz

1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v 0

Feafures:
A. Capacity from 500kg to5000kg
B. Quality chain is supplied by FEC JAPAN.
C. Most tensile safety hooks without break.
D. Compact and high efficient motor with heat protection device.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. CE certified.
I. IP54 protection on electric hoist for dust and water proof protection.

Technical Parameters & Specifications:

HHXG2 SUSPENDED TYPE SINGLE PHASE ELECTRIC CHAIN HOIST
Model		HHXG205	HHXG210	HHXG220	HHXG230	HHXG250
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2	5.2	2.6	1.7	1
Hoist Motor	Output(kw)	0.8	1.2	1.2	1.2	1.2
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305	HHXG310	HHXG320	HHXG330	HHXG350
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		6.3	6.3	3.2	2.1	1.3
Hoist Motor	Output(kw)	0.8	1.6	1.6	1.6	1.6
3-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)

HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
Model		HHXG305B	HHXG310B	HHXG320B	HHXG330B	HHXG350B
Rated Load(Ton)		0.5	1	2	3	5
Lift(m)		3	3	3	3	3
Lifting Speed(m/min)		5.2/1.7	5.2/1.7	2.6/0.85	1.7/0.58	1.0/0.35
Hoist Motor	Output(kw)	0.8/0.25	1.2/0.4	1.2/0.4	1.2/0.4	1.2/0.4
1-phase	Ins Class	F	F	F	F	F
	%ED	40	40	40	40	40
Load	Dia(mm)	7.1	7.1	7.1	7.1	7.1
Chain	Number of falls	1	1	2	3	5
Dynamical Test(KN)		5.5	11	22	33	55
Min. Headroom		545	580	740	790	950
MaxG(mm)
Net Weight		64	65	72	80	135
(kg)
